1. Leaky Lid Driven Cavity Flow

The classical problem of the closed cavity driven by the motion of a leaky lid has been used rather extensively as a validation test case by many authors (see Ghia et al, 1982 for details). In this problem a unit velocity is specified along the entire top surface and zero velocity on the other surfaces as shown in Figure 4

Reference
  • Guia, U., Ghia, K. and Shin, C., 1982. High-Re solutions for incompressible flow using the Navier-Stokes equations and a multigrid method. J. Comput. Phys., 48, 387-411.

    Some Expected Results


    Two dimensional case

    Model Description

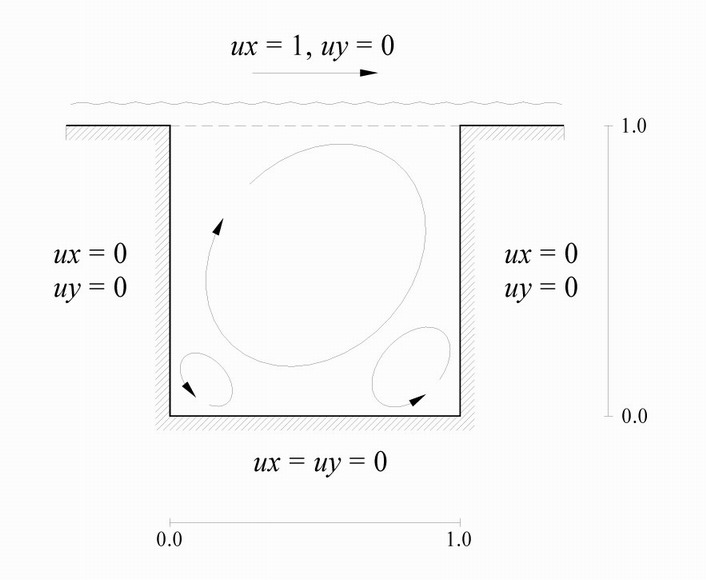

    2D Leaky Lid driven cavity flow problem
    Reynolds 100Reynolds 500Reynolds 1000

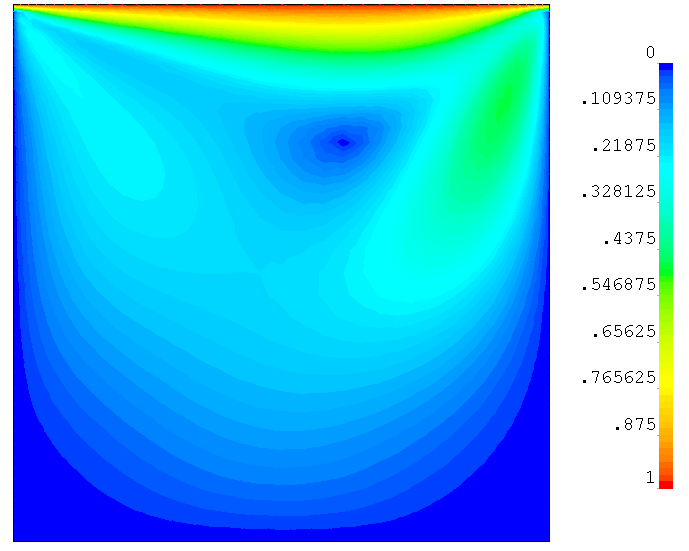

    Re100 velocity field

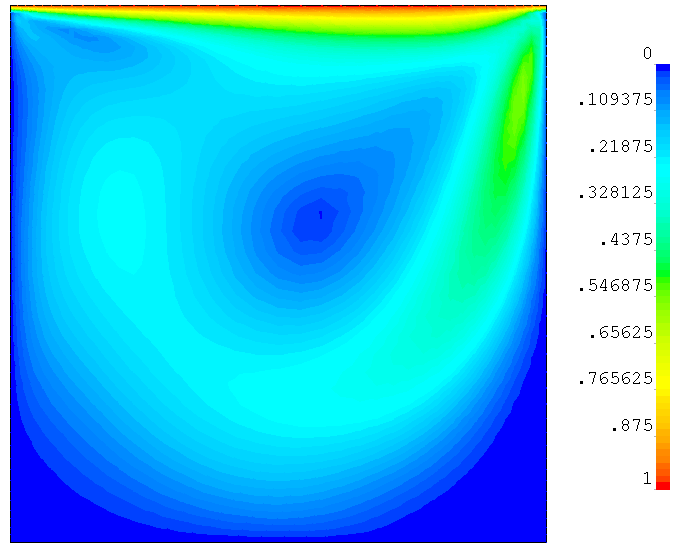

    Re500 velocity field

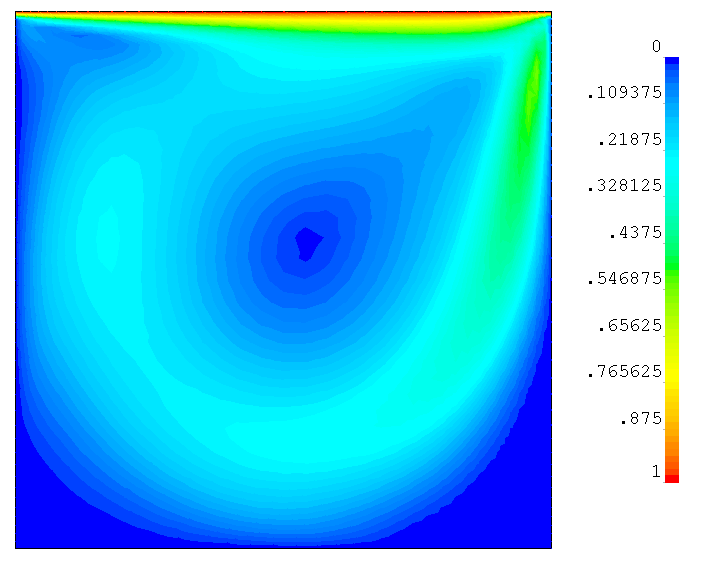

    Re1000 velocity field

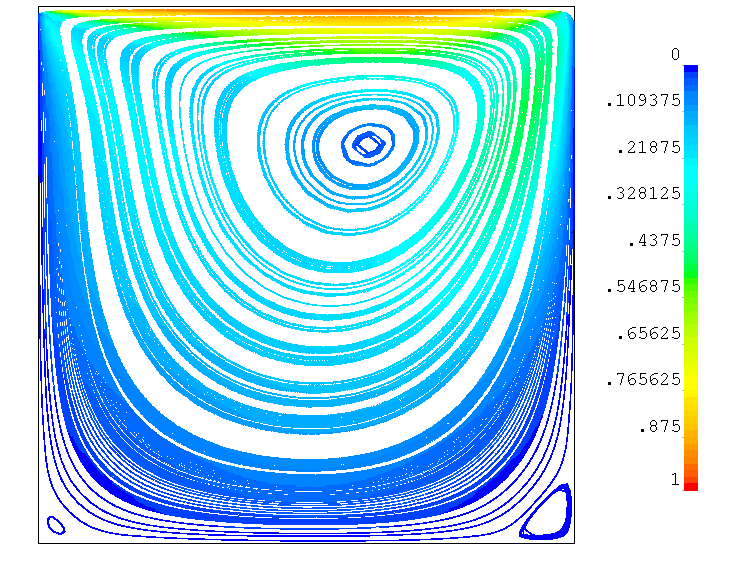

    Re100 streamlines

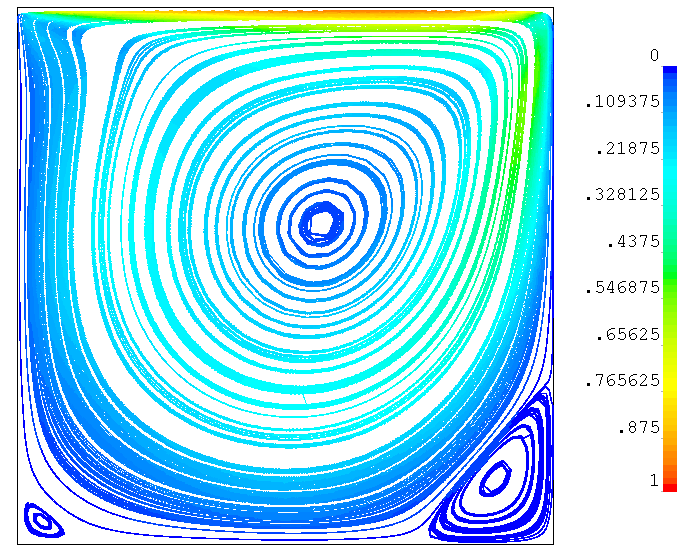

    Re500 streamlines

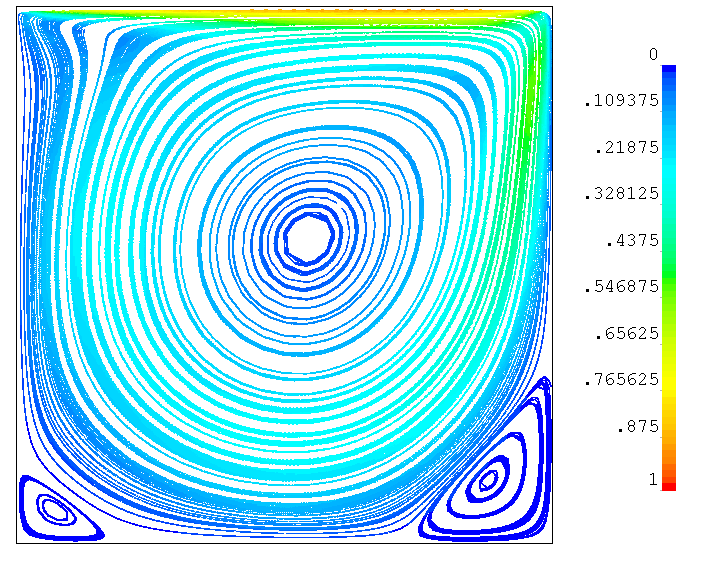

    Re1000 streamlines

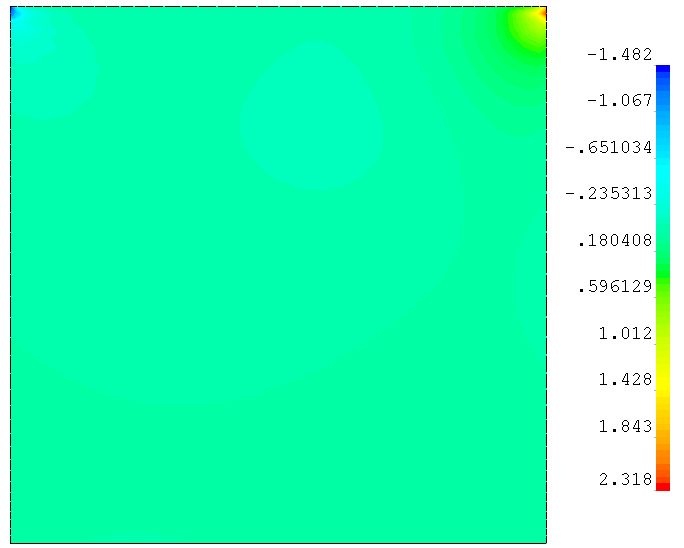

    Re100 pressure field

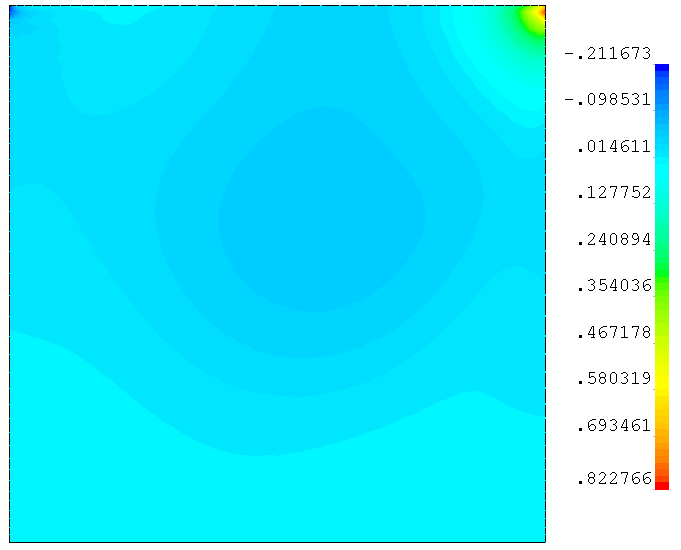

    Re500 pressure field

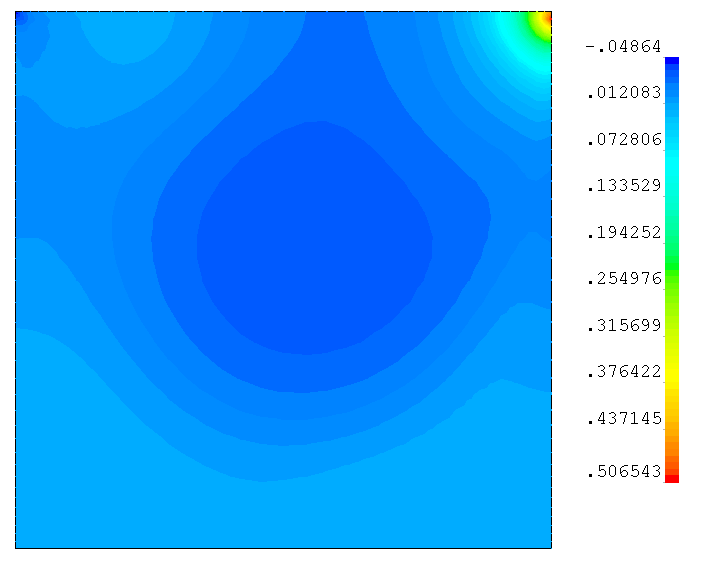

    Re1000 pressure field

    Three dimensional case

    Model Description

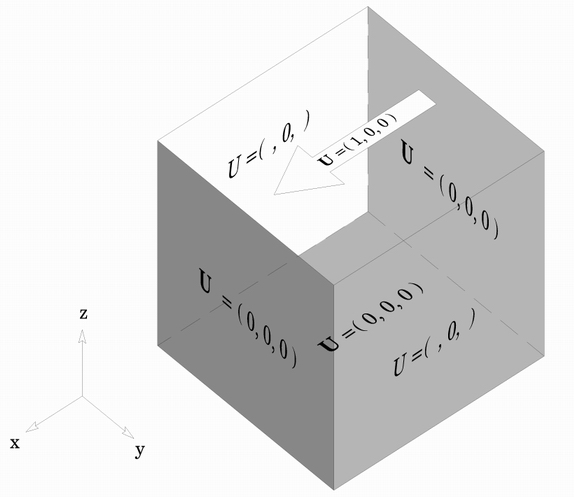

    3D Leaky Lid driven cavity flow problem

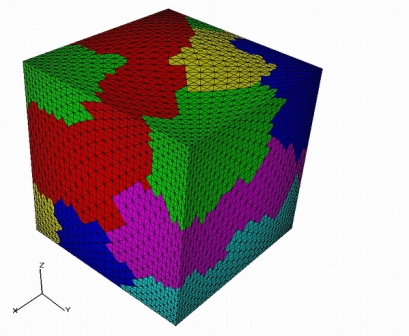

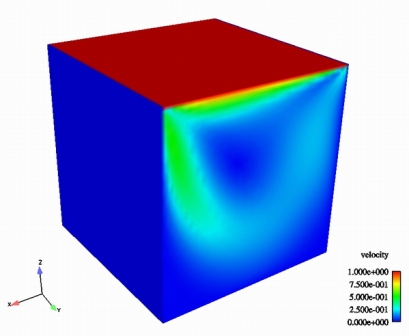

    Model partitioned by MetisVelocity Field (Reynolds 400)
    Parallel Cavity
    Parallel Cavity

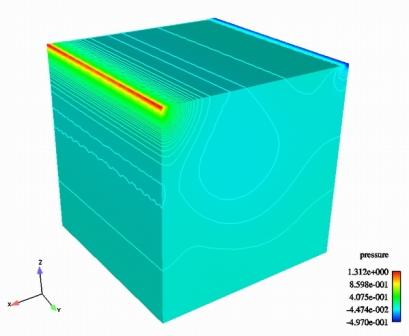

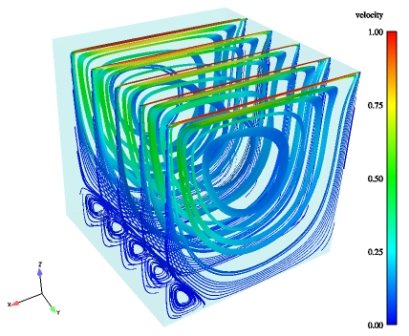

    Pressure Field (Reynolds 400)Stremalines (Reynolds 400)
    Parallel Cavity
    Parallel Cavity

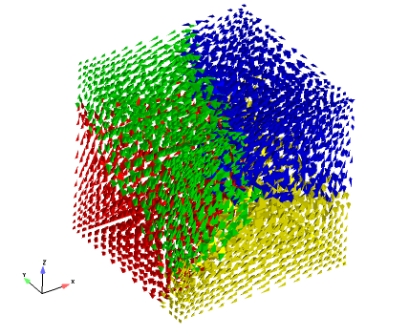

    Model for Hybrid Paralellism - Metis Partitioning (MPI) + Mesh Coloring (OpenMP)
    Parallel Cavity
