Front and rear door. The front door is opened by grasping the wide end of the triangle-shaped door piece and pulling outward. It uses a key lock for security purposes that should open all the front doors in a multi-rack system (see Figure 4-2). Note that the front door and rear door locks are keyed differently. The optional water-chilled rear door does not use a lock.

The rear door has a push-button key lock to prevent unauthorized access to the system. The rear doors have a master key that locks and unlocks all rear doors in a system made up of multiple racks. You cannot use the rear door key to secure the front door lock.

Cable entry/exit area. Cable access openings are located in the front floor and top of the rack. Cables are only attached to the front of the IRUs; therefore, most cable management occurs in the front and top of the rack. Stand-alone administrative, leader and login server modules are the exception to this rule and have cables that attach at the rear of the rack. Rear cable connections will also be required for optional storage modules installed in the same rack with the IRU(s). Optional inter-rack communication cables pass through the top of the rack. I/O and power cables normally pass through the bottom of the rack.

Rack structural features. The rack is mounted on four casters; the two rear casters swivel. There are four leveling pads available at the base of the rack. The base of the rack also has attachment points to support an optional ground strap, and/or seismic tie-downs.

Power distribution units within the rack. A maximum of four single-phase power distribution units (PDUs) are needed per rack, depending on the number of IRUs. Each IRU requires two 5-outlet single-phase PDUs. Administration, leader and service nodes installed in each rack require one or two power plugs each. A three-phase power distribution unit has 18 outlet connections, 16 of them are needed to power two IRUs.

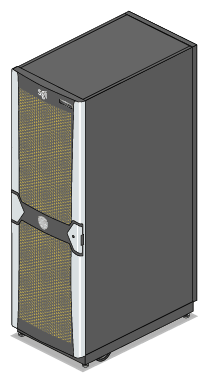

Figure 4-1. Altix ICE 8200 Series Rack Example

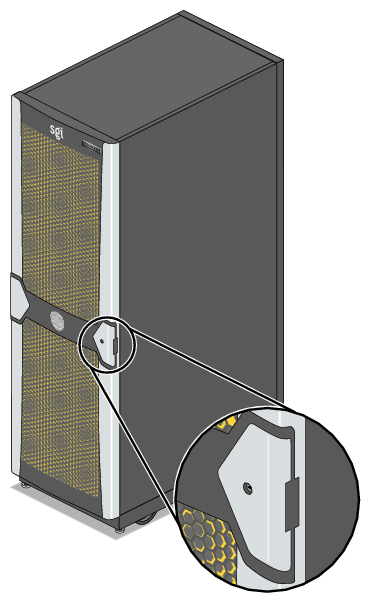

Figure 4-2. Tall (42U) Altix Rack and Front Lock
